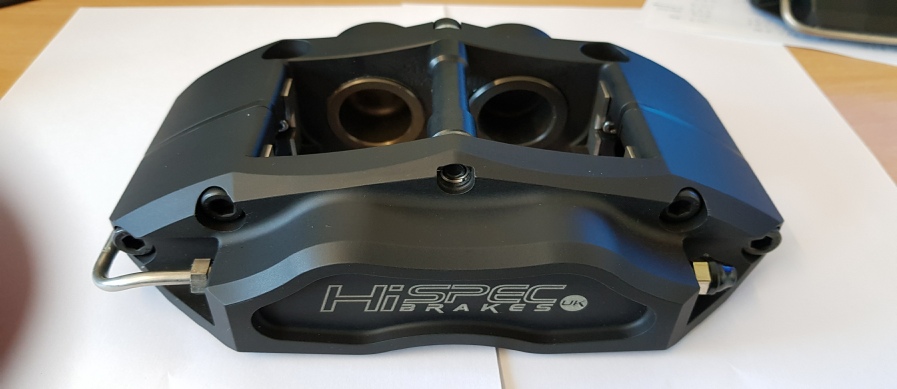

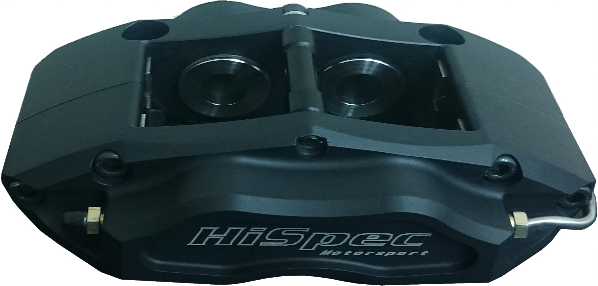

114-4 range


Typical application:

● Heavy duty front and rear caliper for 15” - 16” wheels

Technical specifications:


Piston size (surface area)

option 14¦ 2 x 34.6mm & 2 x 41.2mm (45.47cm2)

Or

option 15¦ 2 x 38.6mm & 2 x 41.2mm (50.07cm2)

Or

option 8  ¦ 4 x 34.6mm (37.61cm2)

Or

option 10¦ 4 x 38.6mm (46.81cm2)

Piston material

Hard anodised billet aluminium (6082 T6) / stainless steel inserts.

Caliper colour

Hard anodised black

Body material

6082 T6 billet aluminium

Weight no pads

1663g-2154g

Hydraulic Thread

 M10 x 1.0

Mounting offset (to rear of disc)

27mm R & RS ¦ 29mm RX ¦ 14.75mm (DL variants)

To suit disc diameter (Width)

260mm - 315mm  RS(10mm - 35mm) ¦ RX(22mm-35mm)

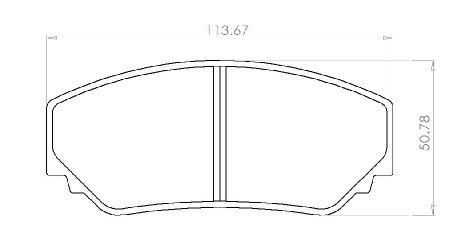

Pad specifications:


Pad type

RS-114 wide

Pad surface area

42.15 cm2

Pad thickness

9.4mm material / 14.5mm total

Pad volume

39.61 cm3

Features

● Radial mount 120mm ctrs.

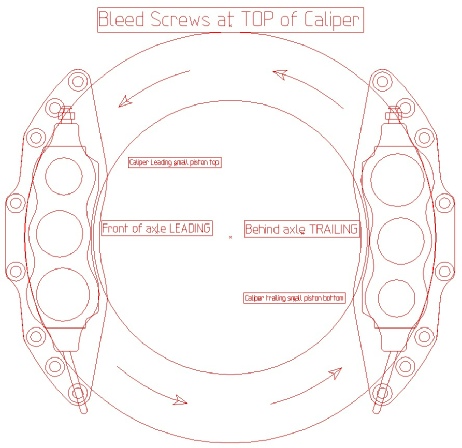

● Optional staggered bores


● High temperature EPDM seals


● Billet aluminium body (6082 T6)


● Stainless steel wear plates


● Billet aluminium pistons (6082 T6)/ stainless steel inserts

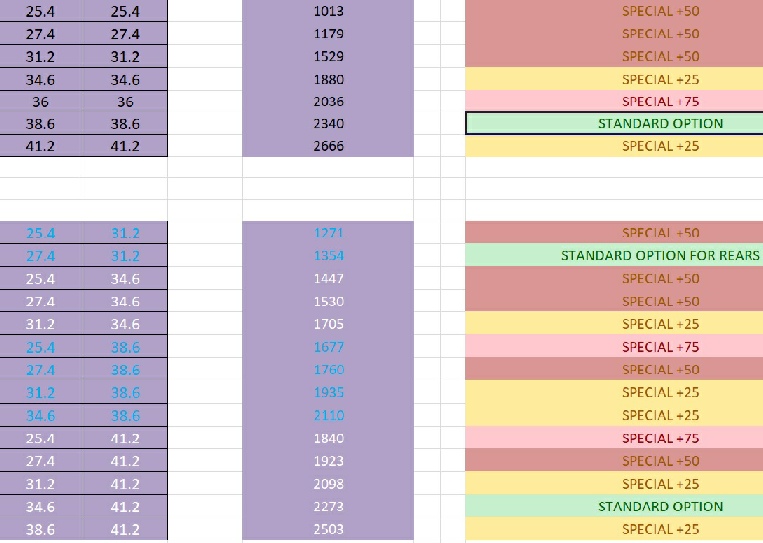

If you need help selecting options, hover here!
Click here to buy brake pads

Variant

Mount type

Piston depth

Part number

Anodised price exc. VAT

R-114 radial 280

Radial 120mm ctrs.

21mm

R114                280

£160.00

R-114 DL

Dynalite fitment 133.35mm lug

21mm

R114                  DL

£170.00

R-114 radial 310

Radial 120mm ctrs.

21mm

R114                310

£160.00

RS-114 radial 280

Radial 120mm ctrs.

26mm

RS114              280

£160.00

RS-114 DL

Dynalite fitment 133.35mm lug

26mm

RS114                DL

£170.00

RS-114 radial 310

Radial 120mm ctrs.

26mm

RS114              310

£160.00

RX-114 radial 280

Radial 120mm ctrs.

30mm

RX114              280

£185.00

RX-114 radial 310

Radial 120mm ctrs.

30mm

RX114              310

£185.00
