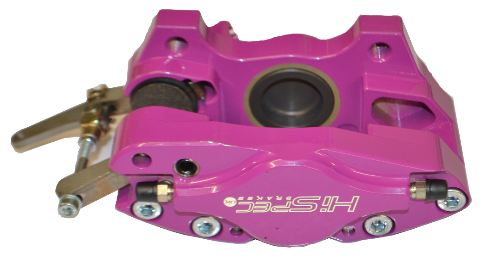

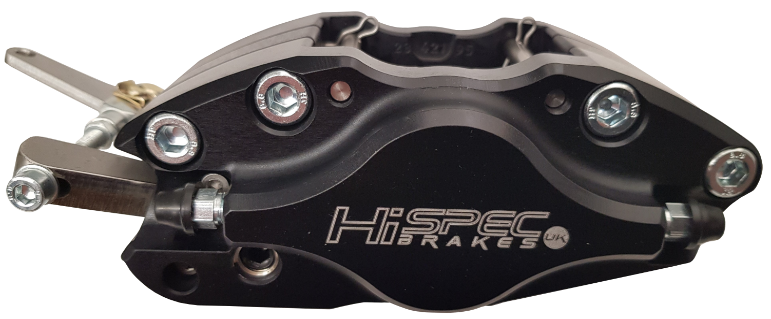

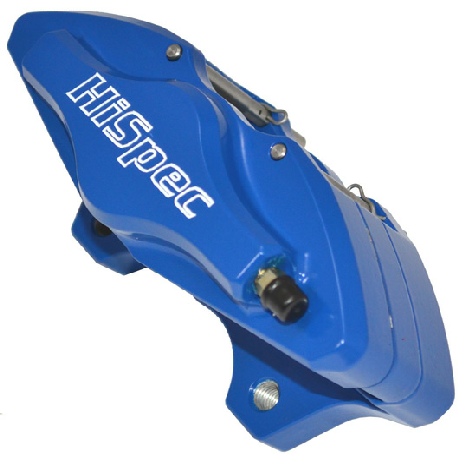

Ultralite 2 SVA range

Typical application:

● Rear caliper for equal balance to Ultralite 4/ Billet 4 280

Technical specifications:


Piston size (surface area)

Option 4 ¦ 2 x 38.6mm (23.40cm2)

Or

Option 3 ¦ 2 x 34.6mm (18.80cm2)

Or

Option 2 ¦ 2 x 31.32m (15.29cm2)

Or

Option 1 ¦ 2 x 27.3mm (11.79cm2)

Piston material

Hard anodised billet aluminium (6082 T6)

Caliper colour

Powdercoat (Black¦ Blue¦ Red¦ Silver¦ Yellow)

anodised (Black¦ Silver)

Body material

6082 T6 billet aluminium

Weight no pads

855g

Hydraulic Thread

 M10 x 1.0

Mounting offset (to rear of disc)

12.2mm

To suit disc diameter (Width)

240mm - 300mm  (8mm - 28mm)

Features

● Ultra narrow, lightweight design


● Billet aluminium body (6082 T6)


● SVA approved

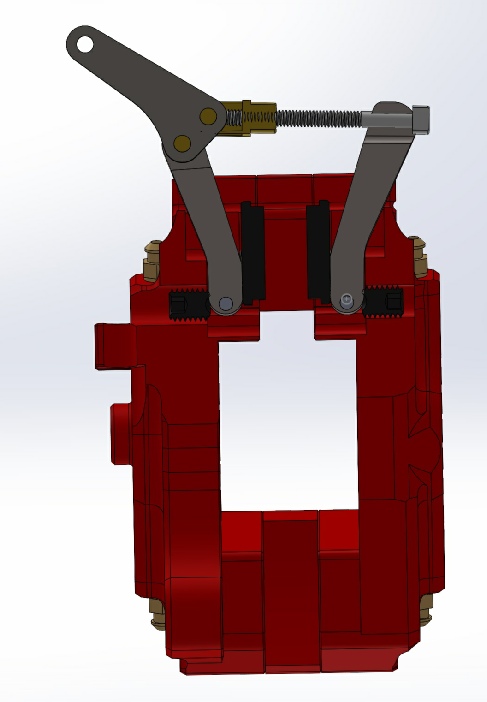

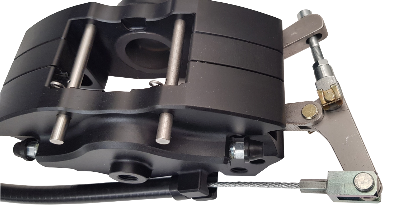

● Fully integrated spot handbrake


● Billet aluminium pistons (6082 T6)

Pad specifications:


Pad type

Ultralite SVA

Pad surface area

27.72 cm2

Pad thickness

9.6mm material /   14.1mm total

Pad volume

26.61 cm3

Variant

Mount type

Piston depth

Part number

Anodised price exc. VAT

Powdercoated price exc. VAT

Ultralite 2 SVA Golf

VW Golf rear lug

21mm

UL2               SVAG

£147.00

£147.00

Ultralite 2 SVA Sierra

Ford Sierra rear lug

21mm

UL2               SVAS

£147.00

£147.00

For more information on Hispec Calipers, please call 01322 286850.

Click here to buy brake pads If you need help selecting options, hover here!

 Buy it Now

SVA handbrake pad

Pad specifications:


Pad type

SVA spot

Pad surface area

5.94 cm2

Pad thickness

3.8mm material / 6.7mm total

Pad volume

2.3 cm3
